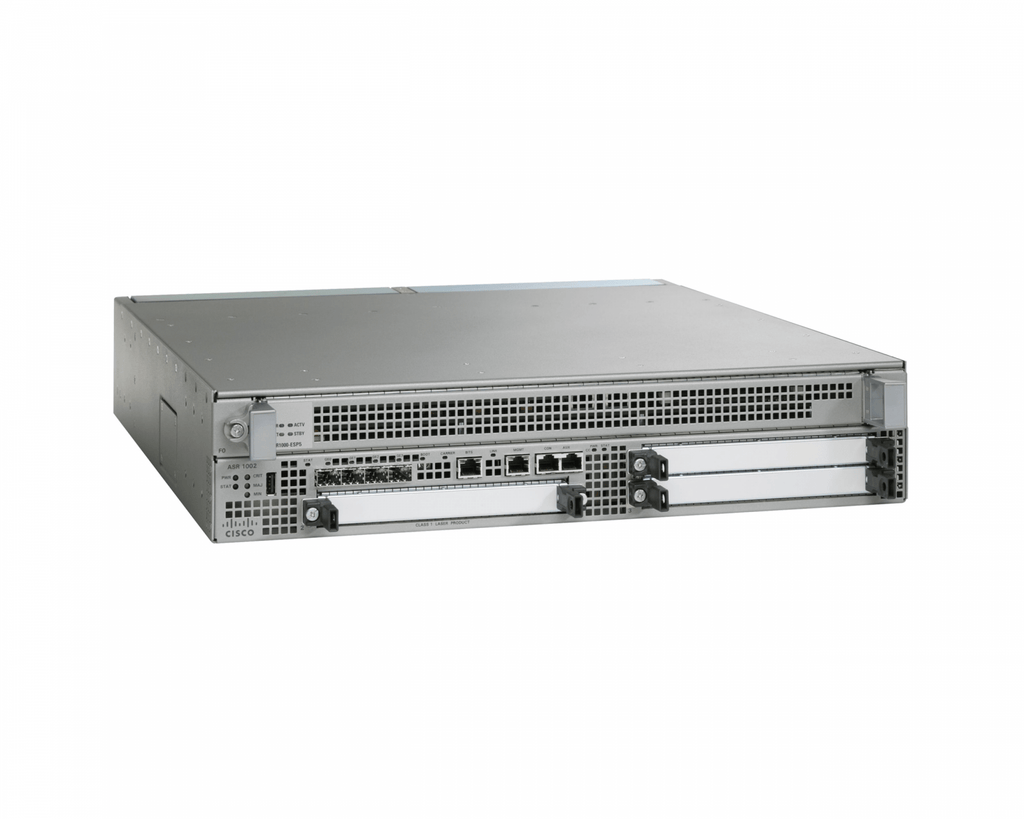

| Brand | Cisco |
| Model | ASR1002X-5G-K9 |
| Product Description | ASR1002-X, 5G, K9, AES |
| Series | Cisco ASR 1000 Series Aggregation Services Routers |
| Form Factor | 2 RU |
| Built-in Ports | 6 x Gigabit Ethernet SFP (SPA bay 0), SyncE capable with optical SFPs |
| SPA Slots | 3 half-height, up to 10 Gbps per slot |
| Forwarding Bandwidth | 5 Gbps default, upgradable by software to 10, 20 or 36 Gbps |
| Crypto Throughput | Up to 4 Gbps |
| Feature Set | Advanced Enterprise Services (AES) |
| Route Processor | Integrated, quad core |
| Embedded Services Processor | Integrated, not field upgradeable |
| DRAM | 4 GB default, up to 16 GB (field replaceable) |
| Storage | 8 GB eUSB |
| Redundancy | Software redundancy, 1+1 redundant power supplies |
| Power Supply Options | AC or DC, hot pluggable (AC and DC not mixed in one chassis) |
| AC Input | 85 to 264 VAC |
| DC Input | -48 VDC (-40.5 to -72 VDC) or +24 VDC (21 to 36 VDC) |
| Maximum Power | 560 W AC, 590 W DC, 470 W output |
| Console and Auxiliary | 2 x RJ-45 |
| Management | 1 x Management Ethernet |
| USB | 2 x USB |
| Network Clocking | Stratum 3 (GR-1244-CORE) |
| Dimensions (H x W x D) | 3.5 x 17.2 x 18.15 in (88.9 x 437.4 x 461.0 mm) |
| Weight | 38.25 lb (17.36 kg) with dual AC power supplies and SPA blank covers |
| Operating Temperature | 5 to 40 C (41 to 104 F) |
| Relative Humidity | 10% to 85% |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
