| JL258A Specification | |

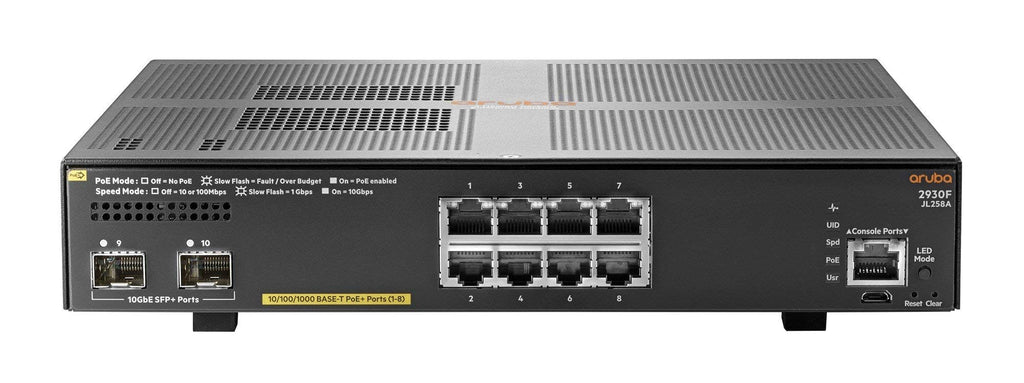

| Type | Aruba 2930F 8G PoE 2SFP Switch |
| System specifications | |
| I/O ports and slots | 8 RJ-45 autosensing 10/100/1000 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE ) Duplex: 10BASE-T/100BASETX: half or full 1000BASE-T: full only |
| Additional ports and slots | 1 dual-personality (RJ-45 or USB micro-B) serial console port |
| Memory and processor | Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress, 4 GB eMMC |
| Management | Aruba AirWave Network Management; IMC – Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB) |
| Performance specifications | |
| 1000 Mb Latency | < 3.8 μs (64-byte packets) |
| 10 Gbps Latency | < 1.6 μs (64-byte packets) |
| Throughput | up to 41.7 Mp/s |
| Switching capacity | 56 Gb/s |
| Routing table size | 10000 entries (IPv4), 5000 entries (IPv6) |
| MAC address table size | 32768 entries |
| Physical specifications | |
| Dimensions | 4.39 x 25.4 x 25.4 cm ( 1.73 x 10 x 10 in) 1U height |
| Electrical specifications | |
| 80plus.org Certification | N/A |
| Description | Power supply meets DoE VI certification |
| Maximum heat dissipation | 558.09 kJ/hr ( 529 BTU/hr) |
| Voltage | 90 - 264 V ac, rated |
| Current | 1.5/0.8 A |
| Maximum power rating | 155 W |
| Idle power | N/A |
| Frequency | 50/60 Hz |
| PoE power | 125 W PoE |
| Environmental specifications | |
| Operating temperature | 0°C to 45°C (32°F to 113°F) up to 5000 Feet - 0C to 40C (32F to 104F) up to 10000 Feet |
| Operating relative humidity | 15% to 95% @ 40°C ( 104°F) noncondensing |
| Nonoperating/Storage temperature | -40°C to 70°C (-40°F to 158°F) up to 15000 Feet |
| Nonoperating/Storage temperature | 15% to 95% @65°C ( 149°F) noncondensing |
| Acoustic | Power: 0 dB, Pressure: 0 dB Fanless |
| Airflow direction | Side-to-side |
| Safety certifications | |
| Safety | UL 60950-1, 2nd Edition EN 60950-1:2006 A11:2009 A1:2010 A12:2011 A2:2013 IEC 60950-1:2005 A1:2009 A2:2013 CSA 22.2 No. 60950-1-07 2nd EN 60825-1:2007 / IEC 60825-1:2007 Class 1 |
| Emissions | EN 55022:2010/CISPR 22 Class A FCC CFR 47 Part 15 Class A VCCI Class A; ICES-003 Class A CNS 13438 |
| Immunity | Generic:EN 55024:2010/CISPR 24 ESDIEC 61000-4-2 RadiatedIEC 61000-4-3 EFT/BurstIEC 61000-4-4 SurgeIEC 61000-4-5 ConductedIEC 61000-4-6 Power frequency magnetic fieldIEC 61000-4-8 Voltage dips and interruptionsIEC 61000-4-11 HarmonicsIEC/EN 61000-3-2 FlickerIEC/EN 61000-3-3 |
