| JL074A Specification | |

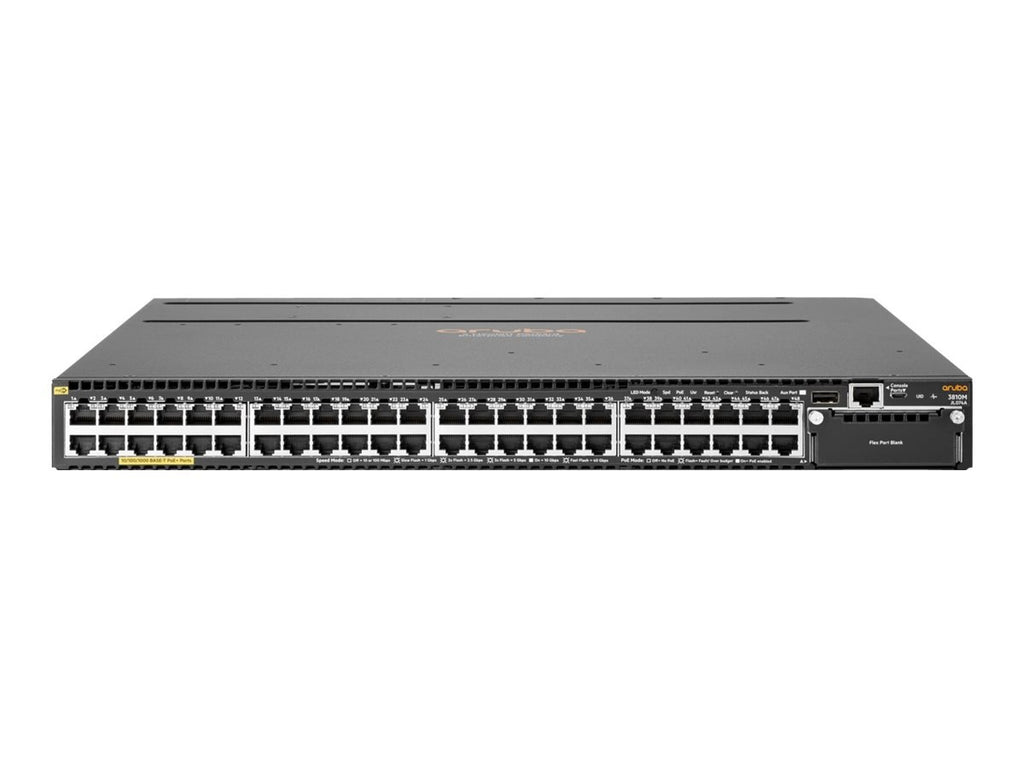

| Type | Aruba 3810M 48G PoE 1-slot Switch |
| Included accessories | 1 Aruba 3810 Switch Fan Tray (JL088A) |
| I/O ports and slots | · 48 RJ-45 autosensing 10/100/1000 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE ); · Duplex: 10BASE-T/100BASETX: half or full; 1000BASE-T: full only; · Ports 1 - 48 support MACSec · 1 open module slot Supports a maximum of 4 SFP ports or 1 40GbE ports, with optional module |
| Additional ports and slots | · 1 stacking module slot · 1 RJ-45 serial console port · 1 RJ-45 out-of-band management port · 1 dual-personality (RJ-45 or USB micro-B) |
| Power supplies | · 2 power supply slots · 1 minimum power supply required (ordered separately) |
| Fan tray | Includes: 1 x JL088A 1 fan tray slot Switch ships with 1 JL088A fan tray installed. Spares ordered separately. |
| Physical characteristics | · Dimensions (H x W x D): 4.39 x 44.25 x 43.13 cm (1.73 x 17.42 x 16.98 in) (1U height) |
| Memory and processor | P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card Dual ARM Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal |
| Mounting and enclosure | Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); Horizontal surface mounting only |
| Performance | · IPv6 Ready Certified · 1000 Mb Latency: < 2.8 μs (FIFO 64-byte packets) · 10 Gb/s Latency: < 1.8 μs (FIFO 64-byte packets) · 40 Gb/s Latency: 1.5 μs (FIFO 64-byte packets) · Throughput: Up to 190.5 Mp/s (64-byte packets) · Routing/Switching capacity:320 Gb/s · Switch fabric speed:338 Gb/s · Routing table size: 10000 entries (IPv4), 5000 entries (IPv6) · MAC address table size: 64000 entries |
| Environment | · Operating temperature: 0°C to 45°C (32°F to 113°F) · Operating relative humidity: 15% to 95% @ 40°C (104°F), noncondensing · Nonoperating/Storage temperature: -40°C to 70°C (-40°F to 158°F) · Nonoperating/Storage relative humidity: 15% to 90% @ 65°C (149°F), noncondensing · Altitude: Up to 10,000 ft (3 km) · Acoustic: Power: 47 dB, Pressure: 29.4 dB |
| Safety | · EN 60950/IEC 60950 · UL 60950 · UL 60950-1 · CAN/CSA 22.2 No. 60950 · EN 60825 · CSA 22.2 60950-1 · EN62479:2010 · EN 60950-1:2006 A11:2009 A1:2010 A12:2011 A2:2013 · EN62368-1, Ed. 2 · IEC 60825:2007 · IEC 60950-1:2005 Ed.2; Am 1:2009 A2:2013 · EN60850-1:2007 / IEC 60825-1: 2007 Class1 Class 1 Laser Products / Laser Klasse 1 · UL 62368-1 Ed.2 |
| Emissions | · FCC Class A · VCCI Class A · EN 55022/CISPR 22 Class A · EN 60950-1:2006 A11:2009 A1:2010 A12:2011 A2:2013 |
| Immunity | · Generic: EN55022: 2010 · EN: EN55024: 2010 · ESD: IEC 61000-4-2 · Radiated: IEC 61000-4-3; 3 V/m · EFT/Burst: IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line) · Surge: IEC 61000-4-5; 1 kV/2 kV AC · Conducted: IEC 61000-4-6; 3 V · Power frequency magnetic field: IEC 61000-4-8; 1 A/m, 50 or 60 Hz · Voltage dips and interruptions: IEC 61000-4-11; >95% reductions, 0.5 period; 30% reduction, 25 periods · Harmonics: EN61000-3-2:2006 A1:2009 A2:2009 Class A · Flicker: EN61000-3-3:2008 |
| Management | · Aruba AirWave Network Management · IMC – Intelligent Management Center · Command-line interface · Web browser · Configuration menu; · Out-of-band management (RJ-45 Ethernet) · In-line and out-ofband · Out-of-band management (serial RS-232c or micro usb) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
