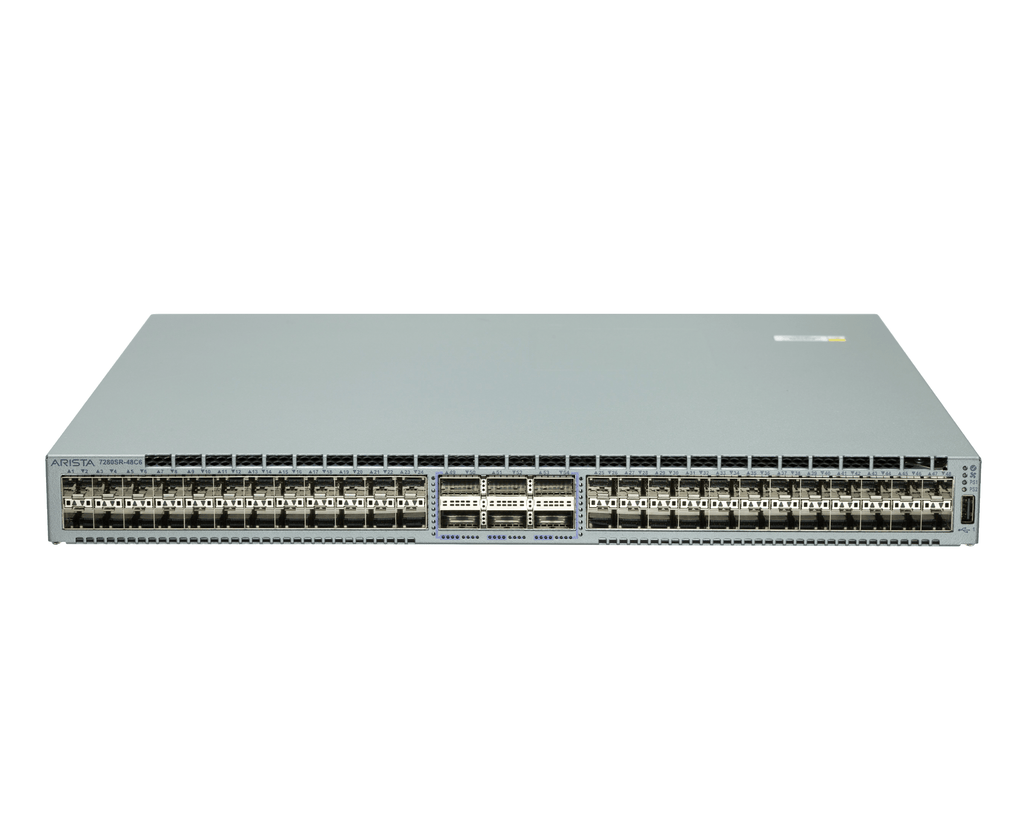

| Manufacturer | Arista |
| Product Line | 7280R Series (7280RA) |
| Product Type | Switch Router |
| Ports | 48x SFP+ (1G/10G) + 6x QSFP100 |
| Max 100GbE Ports | 6 |
| Max 50GbE Ports | 12 |
| Max 40GbE Ports | 6 |
| Max 25GbE Ports | 24 |
| Max 10GbE Ports | 72 |
| Throughput (Full Duplex) | 2.16 Tbps |
| Packets Per Second | 720 Mpps |
| Latency | From 3.8 Microseconds |
| CPU | Quad-Core x86 |
| System Memory | 8GB (32GB Optional) |
| Packet Buffer Memory | 4GB |
| Flash Storage | 4GB |
| SSD Storage Option | Yes |
| MAC Addresses | 768K |
| IPv4/IPv6 Host Routes | 768K Each |
| IPv4 Unicast LPM Routes | Over 1M |
| IPv6 Unicast LPM Routes | 928K |
| ACL Entries Per Forwarding Engine | 24K |
| Management | 1x 100/1000 Mgmt Port, 1x RS-232 Serial (RJ-45), 2x USB |
| Power Supplies | 2x 500W AC (1+1 Redundant, Hot-Swappable) |
| Fans | 4x Hot-Swappable (N+1 Redundant) |
| Airflow | Front-to-Rear (This SKU) — Rear-to-Front Variant Available as DCS-7280SRA-48C6-R |
| AlgoMatch | Supported |
| NEBS Compliant | Yes |
| Rack Units | 1U |
| Dimensions (W x H x D) | 19 x 1.75 x 16 in |
| Weight | 19.6 lb (8.9 kg) |
| Typical/Max Power Draw | 313W / 410W |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
