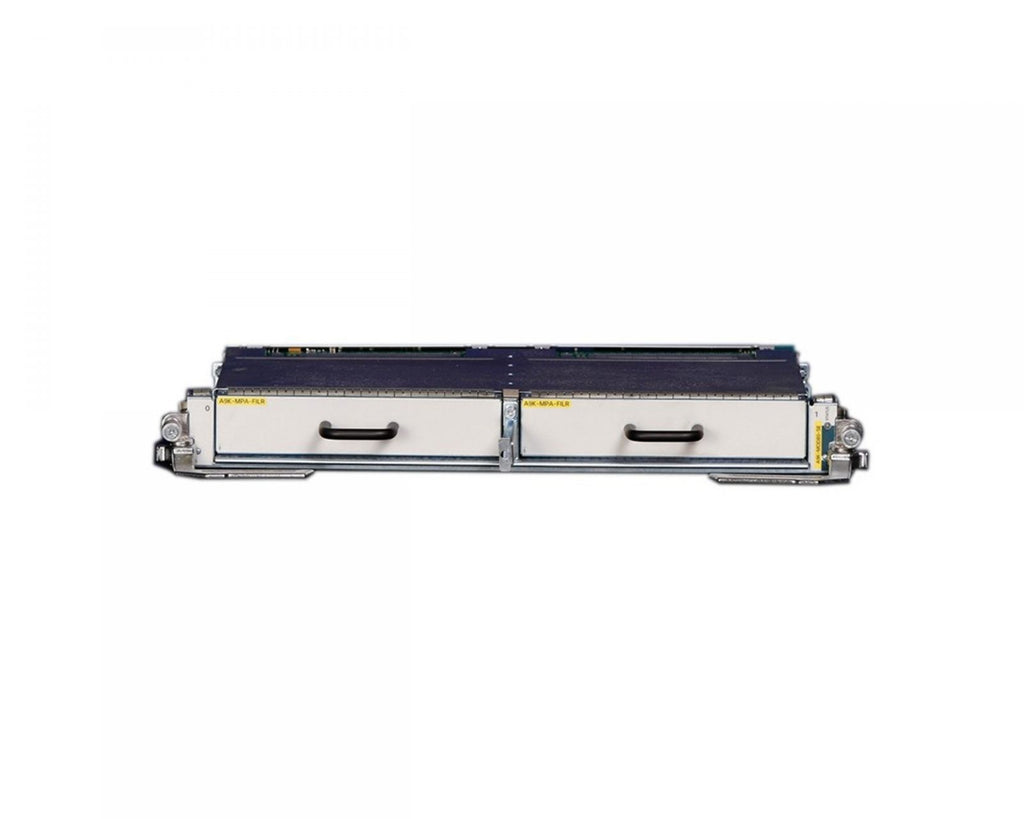

| A9K-MOD80-SE Specifications Type | ASR 9000 Mod80 Modular Line Card, Service Edge Optimized, requires modular port adapters |
| Physical Dimensions | 14.5 W x 1.72 H x 22.40 L 14.5 W x 1.72 H x 24.25 L (including ejector levers) |
| Weight | 17.5 lbs. (est.) (7.93 Kg) |
| Chassis compatibility | Compatible with the Cisco ASR 9922, 9010, 9006 and 9001 systems |
| Port density | Up to 2 modular port adapters are supported per line card. |
| Card density | Maximum number of line cards per system: Cisco ASR 9922 = 20, Cisco ASR 9010 = 8, and Cisco ASR 9006 = 4 |
| Options | Each line card is available as either a Service Edge Optimized (enhanced QoS) or Packet Transport Optimized (basic QoS) line card. |
| Reliability and availability | Line card online insertion and removal (OIR) support without system impact |
| Network Equipment Building Standards (NEBS) | Cisco ASR 9000 Series Routers are designed to meet: · SR-3580: NEBS Criteria Levels (Level 3) · GR-1089-CORE: NEBS EMC and Safety · GR-63-CORE: NEBS Physical Protection |
| Operating temperature (nominal) | 41 to 104ºF (5 to 40ºC) |
| Operating temperature (short-term) | 23 to 131ºF (–5 to 55ºC) |
| Operating humidity (nominal) relative humidity | 10 to 85% |
| Storage temperature | –40 to 158ºF (–40 to 70ºC) |
| Storage relative humidity | 5 to 95% Note: Not to exceed 0.024 kg of water per kg of dry air |
| Operating altitude | –60 to 4000m (up to 2000m conforms to IEC, EN, UL, and CSA 60950 requirements) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
