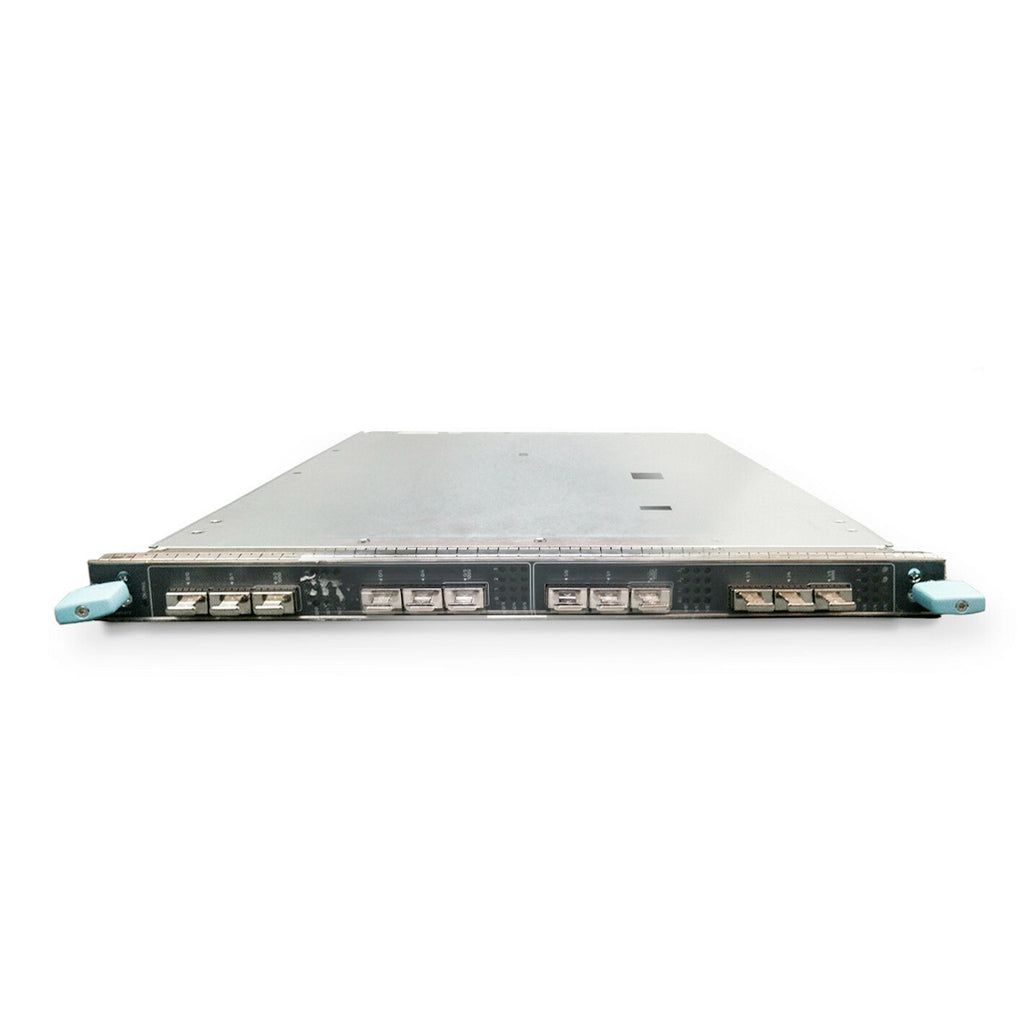

| Manufacturer | Juniper Networks |
| Part Number | MPC7E-MRATE |
| Product Type | Modular Port Concentrator (MPC) Line Card |
| Compatible Chassis | MX240; MX480; MX960; MX2000 |
| Total Ports | 12x QSFP+/QSFP28 |
| Port Speeds | 10G; 40G (all 12 ports); 100G (ports 0/2; 0/5; 1/2; 1/5 only) |
| Breakout Support | QSFP+ to 4x 10G via breakout cable |
| Max Throughput | 480 Gbps (MX240/MX480/MX960); 430 Gbps (MX2000 with SFB2) |
| Chipset | Juniper Trio 3.0 |
| FIB Scale | Up to 2M routes |
| RIB Scale | Up to 6M routes |
| L3VPN | Up to 32 instances per card |
| MTU (Transit) | 256 to 16,000 bytes |
| MTU (Host-Bound) | 256 to 9,500 bytes |
| Timing | IEEE 1588v2 PTP |
| Operating Temperature | Up to 55°C at sea level (all slots); up to 40°C at altitude |
| Power Consumption | 440W at 25°C; 465W at 40°C; 545W at 55°C |
| Weight | 15.7 lbs |
| Optics | Sold separately |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
