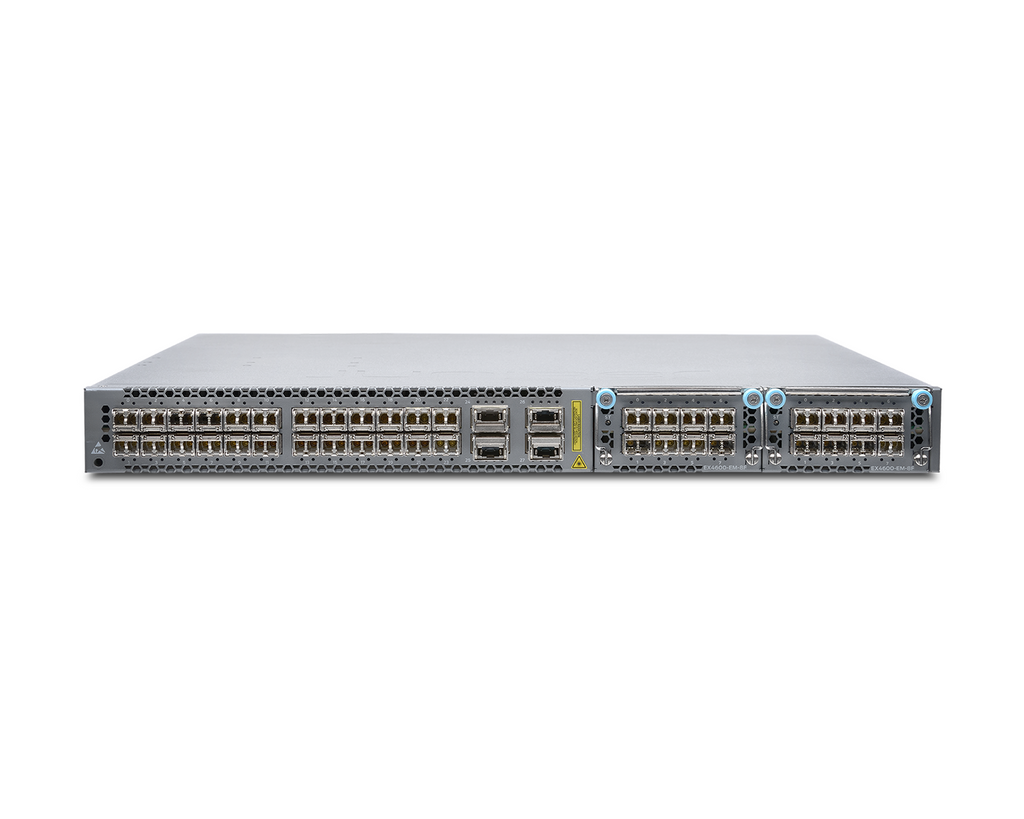

| Device Type | Switch - 24 ports - L3 - managed |
|---|---|
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 24 x 1 Gigabit SFP/ 10 Gigabit SFP 4 x 40 Gigabit QSFP (breakout compatible) |
| Performance | Switching capacity: 1.44 Tbps | Switching capacity: 1.07 Bpps |
| Capacity | Virtual interfaces (VLANs): 4091 | LAG groups: 128 | Maximum member ports per LAG: 32 | Firewall policies: 4000 | IPv4 routes (Unicast): 128000 | IPv4 hosts: 208000 | Equal-Cost Multipathing (ECMP) ways: 64 | IPv4 routes (Multicast): 104000 | IPv6 routes (Multicast): 52000 | ARP entries: 48000 | IPv6 routes (Unicast): 64000 | Multiple Spanning Tree Protocol instances: 64 | VLAN Spanning Tree Protocol instances: 253 | QoS hardware queues per port: 12 |
| MAC Address Table Size | 288K entries |
| Jumbo Frame Support | 9216 bytes |
| Fibre Channel | FC-BB-6 |
| Routing Protocol | OSPF RIP BGP-4 IS-IS RIP-2 BGP IGMPv2 IGMP VRRP OSPFv2 PIM-SM IGMPv3 MSDP static IPv4 routing ECMP MPLS Bidirectional Forwarding Detection (BFD) CIDR |
| Remote Management Protocol | SNMP 1 SNMP 2 RMON Telnet SNMP 3 TFTP SSH CLI |
| Encryption Algorithm | MD5 |
| Authentication Method | Secure Shell (SSH) RADIUS TACACS Secure Shell v.2 (SSH2) |
| Features | VPN support BOOTP support RARP support ARP support trunking VLAN support DoS attack prevention store and forward MAC address filtering IPv6 support High Availability SNTP support Low-latency queuing (LLQ) Weighted Random Early Detection (WRED) Spanning Tree Protocol (STP) support Rapid Spanning Tree Protocol (RSTP) support Multiple Spanning Tree Protocol (MSTP) support Data Center Bridging Exchange (DCBX) support priority-based flow control DHCP snooping Access Control List (ACL) support Quality of Service (QoS) DHCP server Dynamic ARP Inspection (DAI) Redundant trunk group (RTG) Virtual Chassis technology Non-Stop Bridging (NSB) Non-Stop Routing (NSR) Graceful Route Engine Switchover (GRES) DHCP relay VLAN Spanning Tree Protocol (VSTP) redundant hot swappable fans Class of Service (CoS) sFlow v5 cut-through 12 MB shared buffer IGMP filtering Smoothed Deficit Weighted Round Robin (SDWRR) FCoE support |
| Compliant Standards | IEEE 802.1D IEEE 802.1Q IEEE 802.1p IEEE 802.3x IEEE 802.3ad (LACP) IEEE 802.1w IEEE 802.1s IEEE 802.1ad IEEE 802.1ab (LLDP) IEEE 802.1Qbb IEEE 802.1Qaz IEEE 802.1Qau IEEE 802.1Qbg |
| Status Indicators | Status |
| Interfaces | 24 x 10GBase-X SFP | 4 x 40Gbit LAN QSFP (breakout compatible) | 1 x RJ-45 management | 1 x console management | 1 x USB management | 1 x SFP management |
| Expansion Slots | 2 (total) / 2 (free) x expansion slot |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 (installed) / 2 (max) |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1 1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 279 Watt |
| 80 PLUS Certification | 80 PLUS Silver |
| Compliant Standards | NEBS level 3 EN55022 Class A CB FCC CFR47 Part 15 IEC 60950-1 EN 60950-1 UL 60950-1 Second Edition WEEE RoHS BSMI CNS 13438 REACH EN 60825-1 GR-1089-CORE VCCI Class A GR-63-CORE NCC China RoHS AS/NZS CISPR 22:2009 CAN/CSA-C22.2 No. 60950-1 |
| Width | 17.4 in |
| Depth | 20.5 in |
| Height | 1.7 in |
| Weight | 21.83 lbs |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 0 - 95% (non-condensing) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
