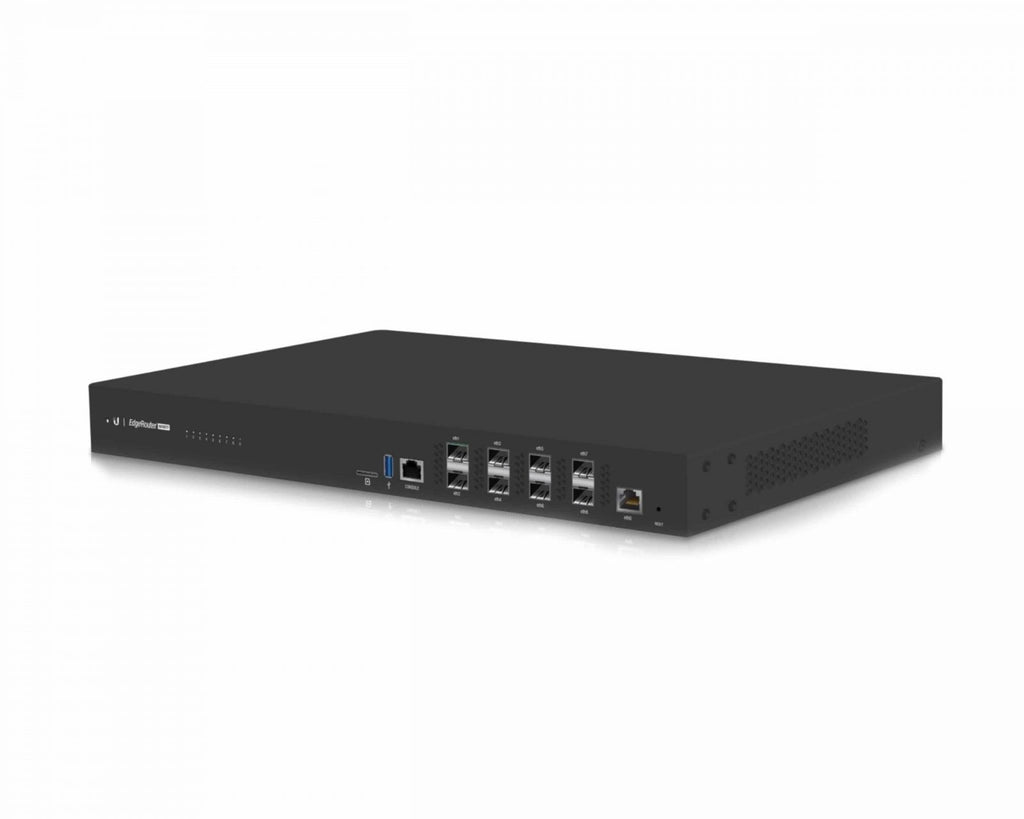

Model | ER-8-XG (EdgeRouter Infinity) |
Device type | High-performance rack-mount router (10G SFP+) |
Ports | 8 × 10G SFP+ ports, 1 × Gigabit RJ45 management port, 1 × RJ45 console |
CPU | 16-core 1.8 GHz processor |
Memory & storage | 16 GB DDR4 RAM; 8 MB NOR flash + 4 GB eMMC NAND |
Aggregate throughput | 80 Gbps total non-blocking throughput |
Switching capacity | 160 Gbps |
Forwarding rate | Approx. 18 Mpps |
Power | Hot-swappable modular AC/DC power supply options; typical max consumption ~100W (model/config dependent) |
Cooling | Field-replaceable fans, front-to-back airflow (rack-optimized) |
Management & features | EdgeOS routing features, CLI, SSH, SNMP, advanced routing (BGP/OSPF), firewall, QoS, VLANs |
Mechanical | Rack-mountable 1U; approx. 442.4 × 285.6 × 43.7 mm (17.4 × 11.2 × 1.7") |
Weight | ~4.95 kg (10.9 lb) without mount |
Operating temp | -5°C to 40°C (23°F to 104°F) |
Certifications | CE, FCC, IC (region-dependent) |
Use cases | Edge/core routing for ISP, data center edge, high-performance WAN aggregation |
