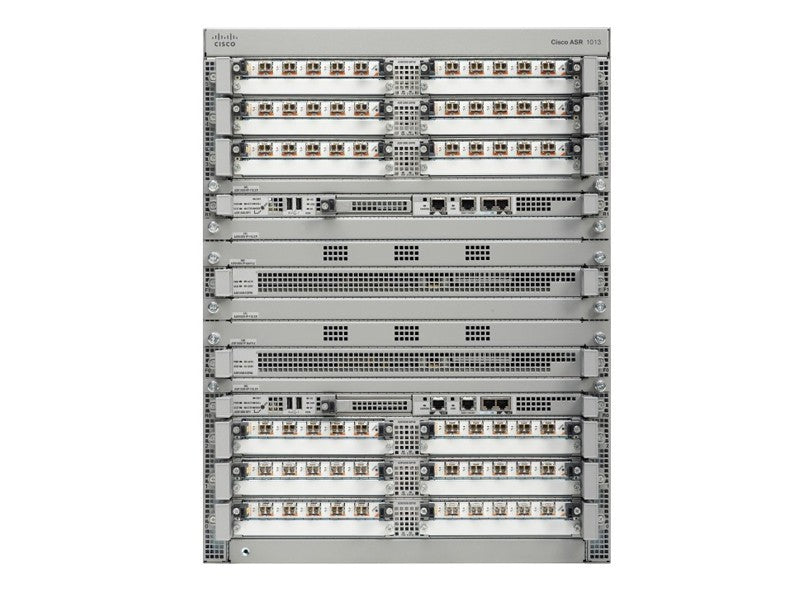

ASR1013 Cisco ASR 1000 Chassis ASR1013 - New
Roll over image to zoom in Click on image to zoom
ASR1013 Cisco ASR 1000 Chassis ASR1013 - New

ASR1013 Cisco ASR 1000 Chassis ASR1013 - New

Condition:  new     MPN:  ASR1013
Price:
$9,495.00
Stock:
In stock

Tech Overview

Cisco ASR 1013 - Modular expansion base
View full product specifications

Overview

ASR1000-RP2 Specifications
Chassis support Cisco ASR 1004, ASR 1006, ASR 1006-X, ASR 1009-X and ASR 1013 chassis (Note: The Cisco ASR 1002 and ASR 1002 Fixed chassis come with the Cisco ASR 1000 Series RP1 built into the chassis.) (Note: Cisco ASR 1001, ASR 1001-X, and ASR 1002-X (part numbers ASR1001, ASR1001-X, ASR1002-X) have an integrated Route Processor built in to the chassis that is not upgradable)
Software compatibility Cisco IOS XE Software, which is based on Cisco IOS Software Release 12.2SR (Please consult your Cisco account representative for additional details.)
Software protocols Refer to Cisco IOS Software 12.2SR protocol support
Connectivity
  •   Console port (RJ-45 connector)
  •   Auxiliary port (RJ-45 connector)
  •   10/100/1000 Ethernet port (RJ-45 connector)
  •   RJ-48 connector for BITS input clock and output source
Memory options
  •   Four 2-GB DDR2 mini-DIMMs
  •   Four 4 GB DDR2 mini-DIMMs
  •   Upgradable memory from 8-GB to 16-GB DRAM
Storage options
  •   80-GB HDD (hot-swappable)
  •   1-GB USB Compact Flash memory
Performance
  • With 8-GB memory:
  •   Up to 1,000,000 IPv4 routes or 1,000,000 IPv6 routes
  •   BGP RR Scalability up to 8,000,000 IPv4 routes or 6,000,000 IPv6 routes With 16-GB memory:
  •   Up to 4,000,000 IPv4 routes or 4,000,000 IPv6 routes
  •   BGP RR Scalability up to 24,000,000 IPv4 routes or 17,000,000 IPv6 routes
Reliability and availability
  •   1 1 redundancy in dual-route-processor configuration
  •   Support for OIR
  •   Support for NSF and SSO
  •   Support for ISSU
MIBs
  •   RFC 2737 compliant
Network management
  •   Telnet and SSH (CLI)
  •   Console port (through the CLI)
  •   SNMP
  •   RFC 2665
Physical dimensions (H x W x D) 0.92 x 16.7 x 14.19 in. (0.02 x 0.428 x 0.36m)
Weight 5.0 lb (2.3 kg)
Environmental
  •   Storage temperature: -38 to 150°F (-40 to 70°C)
  •   Operating temperature, nominal: 41 to 104°F (5 to 40°C)
  •   Operating temperature, short-term: 23 to 131°F (-5 to 55°C)
  •   Storage relative humidity: 5 to 95% RH
  •   Operating humidity, nominal: 5 to 85% RH
  •   Operating humidity, short-term: 5 to 90% RH
  •   Operating altitude: -60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements)

  • We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
  • Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
