Cisco C6800-SUP6T-XL Catalyst 6800 Series Supervisor Engine

Roll over image to zoom in Click on image to zoom

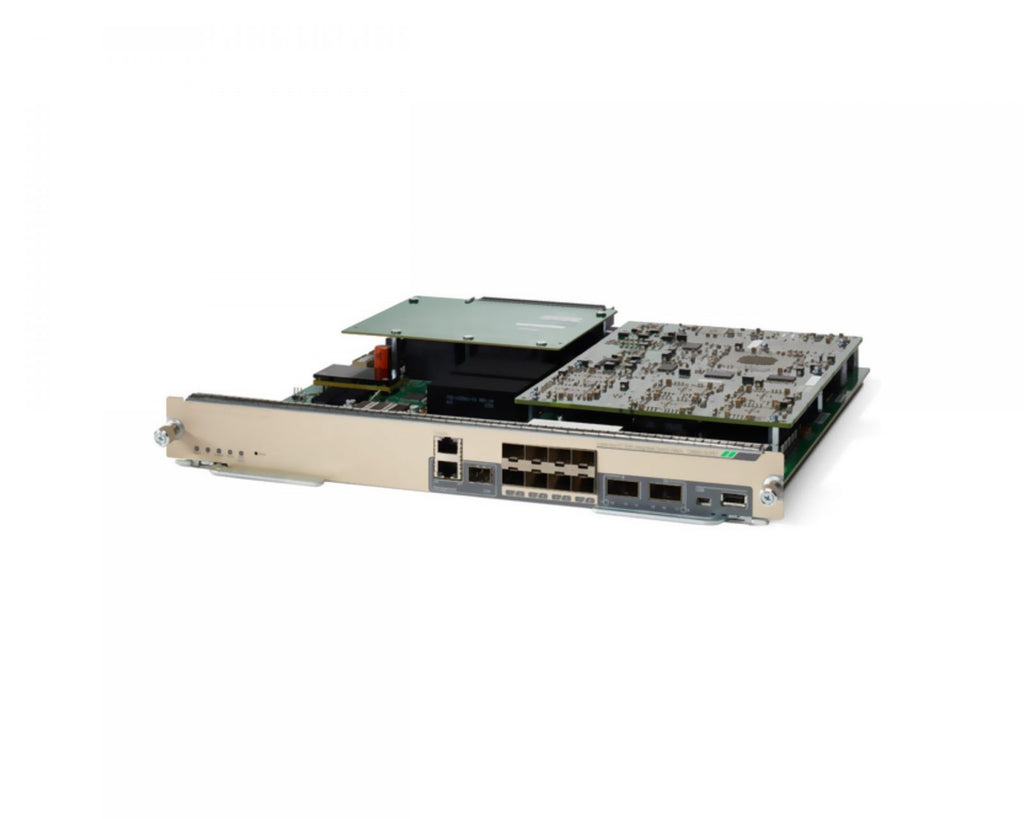

Cisco C6800-SUP6T-XL

The Cisco Catalyst 6800 Supervisor Engine 6T is the newest addition to the family of supervisor engines. The Supervisor Engine 6T is designed to deliver higher performance, better scalability, and enhanced hardware-enabled features. Supervisor Engine 6T integrates a 6-Terabit crossbar switch fabric that enables high performance on the Cisco Catalyst 6807-XL Chassis in active-standby mode. The forwarding engine on Supervisor Engine 6T is capable of delivering high-performance forwarding for Layer 2 and Layer 3 services.

Customer Support

We commit to providing excellence in customer service. We are available 24/7, highly responsive, transparent and offer product, transaction and logistics support.
Our philosophy is to be a part of the solution for our clients, so please contact us with any questions or concerns. Check our feedback rating to see what others thought about their experience with us. We look forward to offering you a Five Star member service.

For more information please visit our support page.

Attribute	C6800-SUP6T	C6800-SUP6T-XL
MAC entries	128K	128K
Routes	256K (IPv4) 128K (IPv6)	Up to 1024K (IPv4) Up to 512K (IPv6)
ACL entries	64K shared for QoS and security	256K shared for QoS and security
NetFlow entries	512K per PFC4/4XL	1024K per PFC4/4XL
Multicast routes	Up to 128K (IPv4) Up to 128K (IPv6)	Up to 128K (IPv4) Up to 128K (IPv6)
IPv4 routing	In hardware Up to 780 Mpps*	In hardware Up to 780 Mpps*
IPv6 routing	In hardware Up to 390 Mpps*	In hardware Up to 390 Mpps*
Layer 2 bridging	In hardware Up to 780 Mpps	In hardware Up to 780 Mpps
Jumbo frame support	Up to 9216 bytes (for bridged and routed packets)	Up to 9216 bytes (for bridged and routed packets)
VLAN	4K	4K
Bridge domains	16K	16K
MPLS	MPLS in hardware to support use of Layer 3 VPNs and Ethernet over (EoMPLS) tunneling Up to 8192 VRFs, with a total of up to 256K forwarding entries per system	MPLS in hardware to support use of Layer 3 VPNs and EoMPLS tunneling Up to 8192 VRFs, with a total of up to 1024K forwarding entries per system
Logical interfaces	128K	128K
EtherChannel hash	8 bits	8 bits
VPLS	In hardware (up to 390 Mpps)	In hardware (up to 390 Mpps)
Generic Routing Encapsulation (GRE)	In hardware (up to 390 Mpps)	In hardware (up to 390 Mpps)
Network Address Translation (NAT)	Hardware assisted	Hardware assisted
Onboard memory	4 GB	4 GB
Ingress buffers	1.25 MB per 10-Gb port in 2:1 mode 2.5 MB per 10-Gb port in 1:1 mode (10 MB per port ASIC)	1.25 MB per 10-Gb port in 2:1 mode 2.5 MB per 10-Gb port in 1:1 mode (10 MB per port ASIC)
Egress buffers	250 MB per 10-Gb port in 2:1 mode 1 GB per 40-Gb port in 2:1 mode 500 MB per 10-Gb port in 1:1 mode 2 GB per 40-Gb port in 1:1 mode (2 GB per fabric interface and replication engine (FIRE) ASIC)	250 MB per 10-Gb port in 2:1 mode 1 GB per 40-Gb port in 2:1 mode 500 MB per 10-Gb port in 1:1 mode 2 GB per 40-Gb port in 1:1 mode (2 GB per fabric interface and replication engine (FIRE) ASIC)

We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
